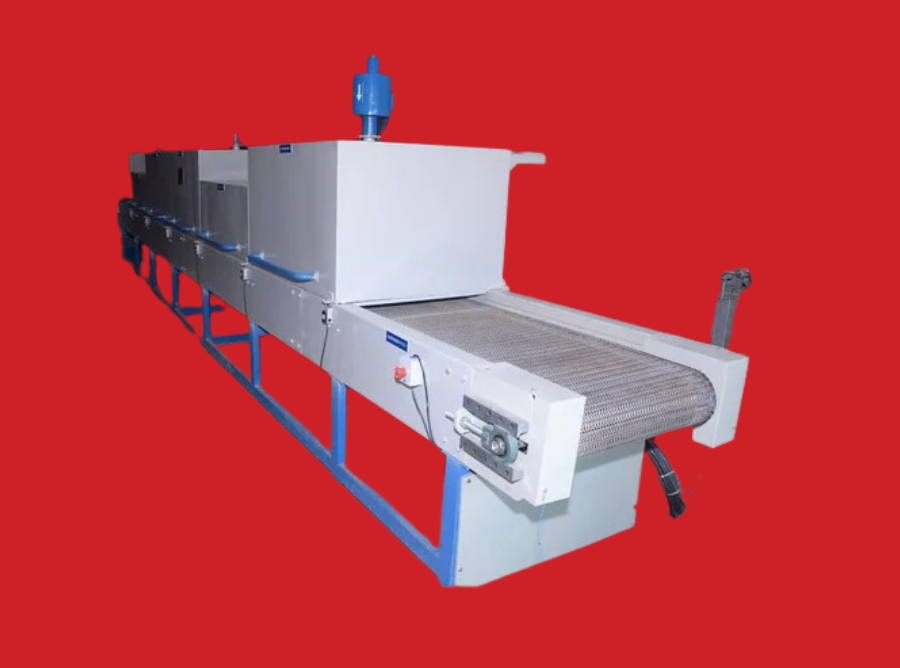

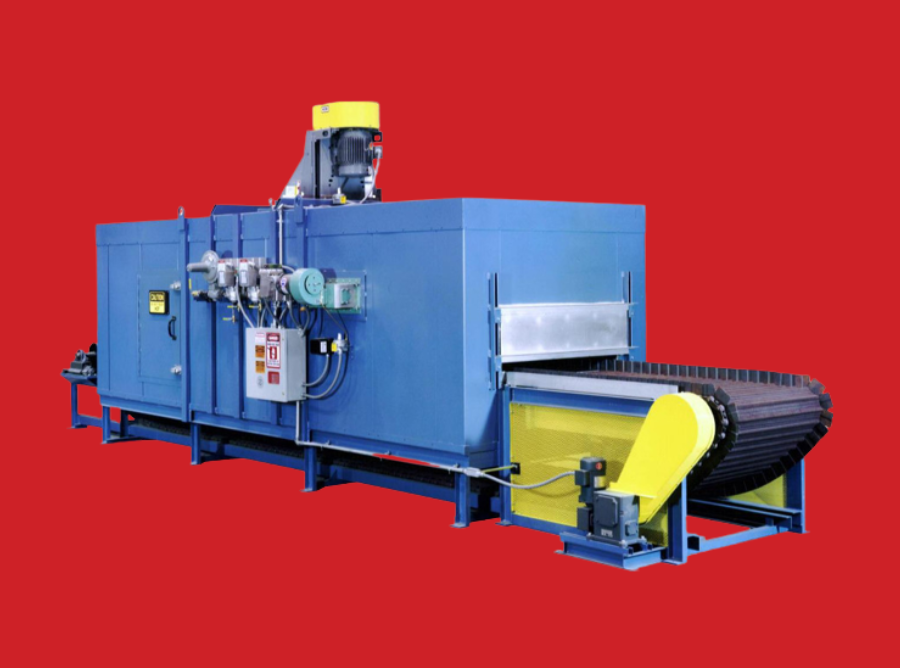

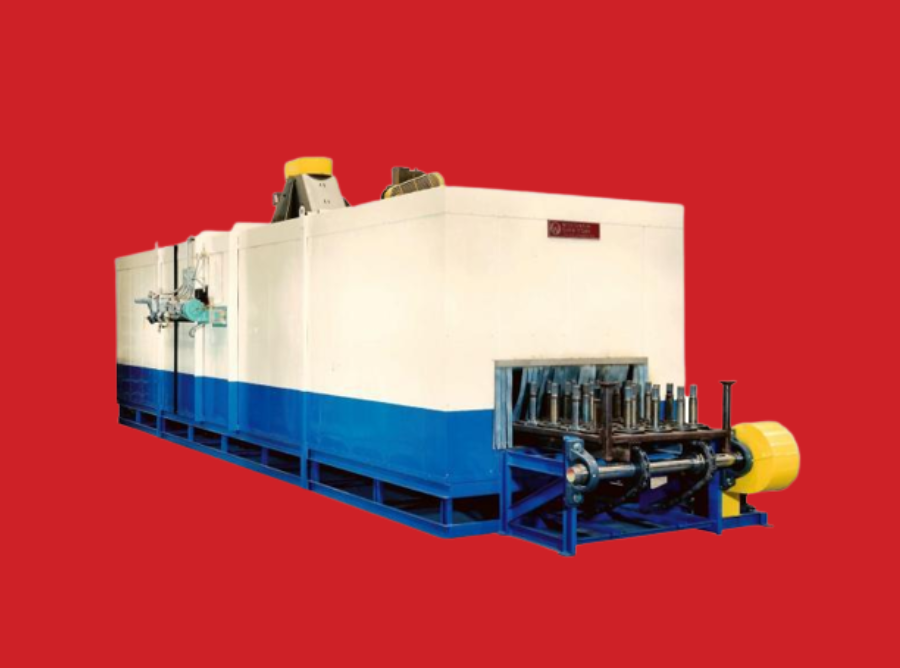

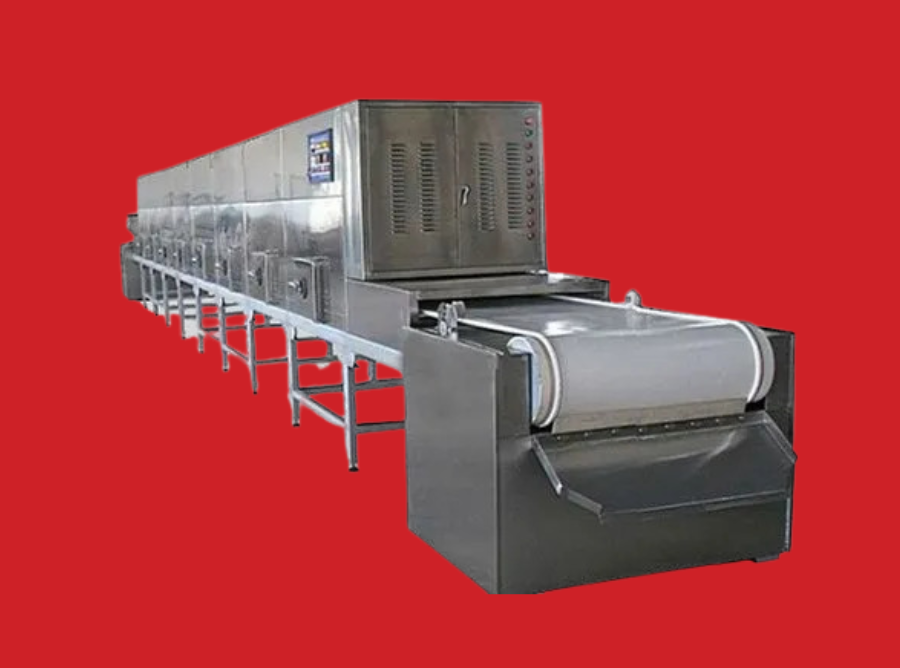

This is a belt conveyor oven consisting of various zones where variable/same temperature can be maintained in different zones of the oven. Common or individual control panels can be provided on each zone. Air circulation for uniform temperature is provided by fans/blowers in each zone. The jobs are placed on the belt on the loading side of the oven & unloaded from the other side. Product Description
Construction: The oven is made out of Mild steel or stainless steel sheets from both inside and outside or mild steel from outside and stainless/ G.I sheets from inside.
Construction: The oven is made out of Mild steel or stainless steel sheets from both inside and outside or mild steel from outside and stainless/ G.I sheets from inside.
Temperature Range: Ambient to 500°C
Temperature controller: PID with or without temp. Profiling (ramp & soak) can be provided with SSR/ SCR for optimum accuracy. The programming of PID can vary from 4 programmes to 99 programmes.
Safety/Blind Temperature Control: Digital/Analog temperature controller can be provided for safety. It acts as a backup & does not allow temperature to shoot up in case the main temperature controller fails to operate.
Conveyor speed control: Variable frequency drive is to increase or decrease the speed of the conveyor.
Temperature Recorder: To monitor the uniformity of temperature at different points at the same time, Microprocessor based multi point strip chart or paper less, Temp. Indicator cum Recorder can be incorporated with the system.
| Description | ||
|---|---|---|
| Application: For AC Coils, Painting, Automobiles, Metal Industries, Furnitures etc. | ||
| Size of the working chamber: As per client requirement. | ||
| Material of Construction: Mild Steel, Stainless Steel 304/316, GI. | ||
| Temperature Range: Ambient to 150°C / 250°C / 400°C / 500°C | ||
| Air Circulation: Vertical, Horizontal or Combination. | ||
| Timer: Digital Pre- Settable with range up to 0 - 999 minutes / seconds. | ||
| Power Supply: 415 Volts 3 Phase 50 Hz /60 Hz. | ||
| Heating Media: Electrical. | ||
| Heating Elements: Low Wattage SS Tubular. | ||
| Insulation: Ceramic Wool / Mineral Wool. | ||
| Height Adjustable Door: Both Sides on Request | ||
| Air Curtains: Both sides on request to minimize the heat loss. | ||
| Exhaust Manual or Automatic: Automatic forced exhaust system with fresh air inlet. | ||
| Manually adjustable damper with fresh air inlet. |
