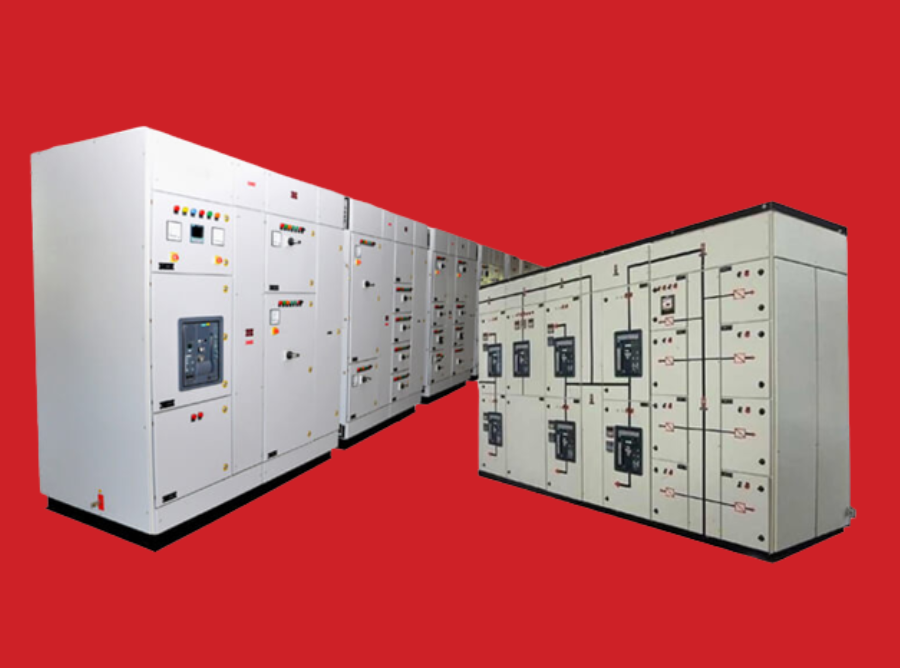

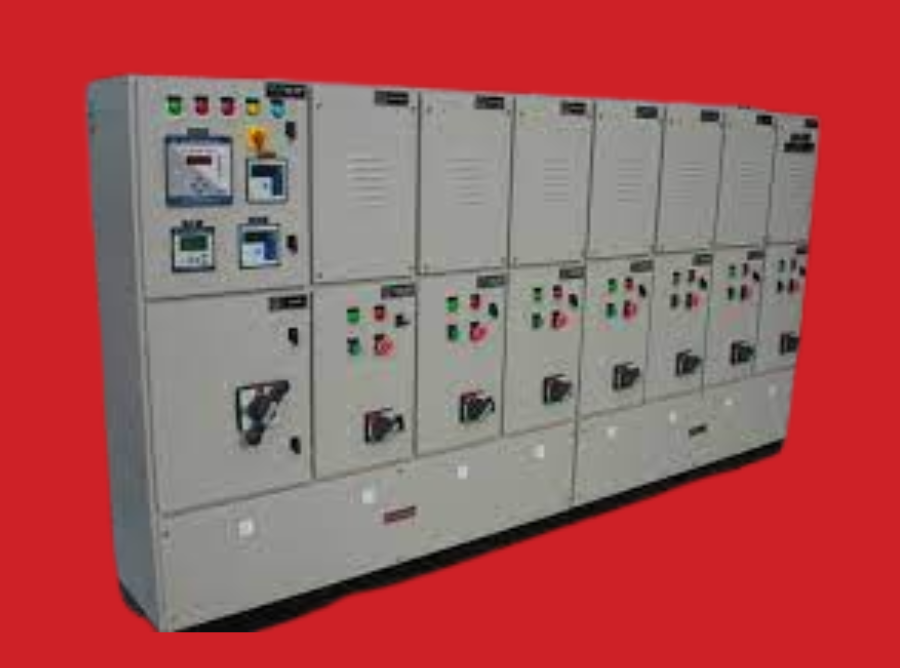

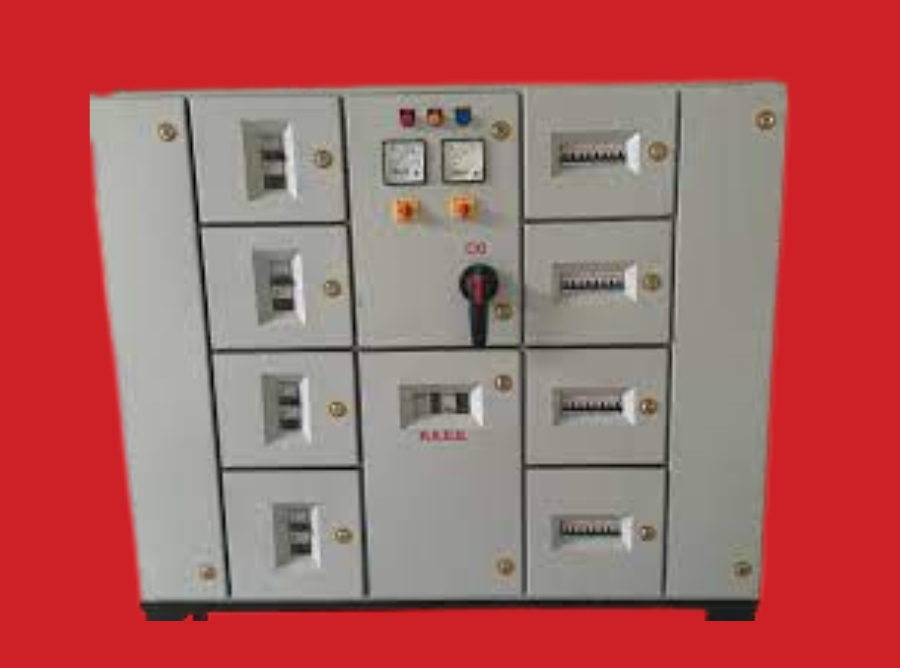

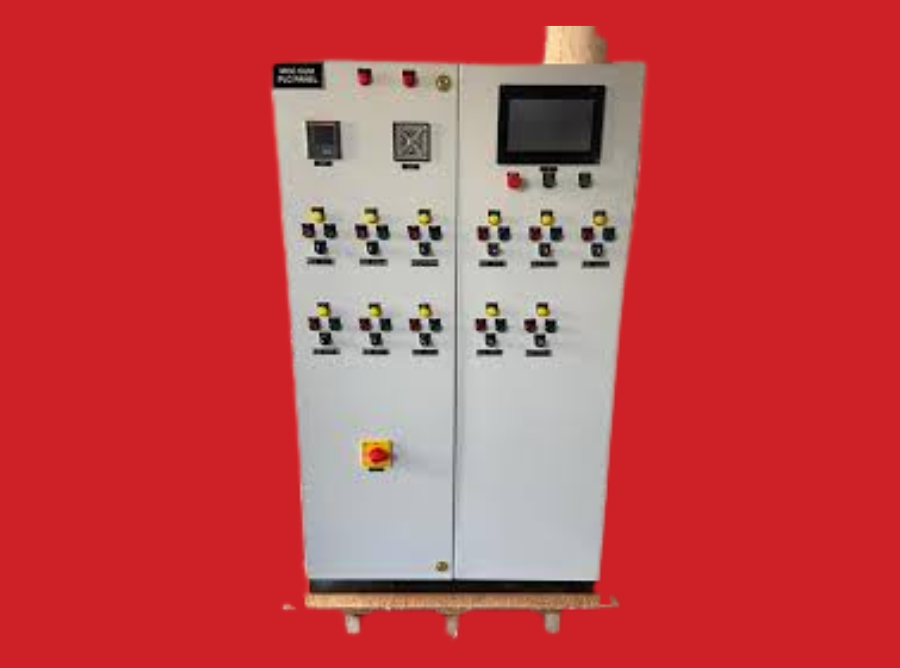

Motor Control Centers (MCCs) are central hubs in industrial settings that facilitate the control, monitoring, and protection of various electric motors and associated equipment. These panels are designed to streamline industrial processes by efficiently managing motor-driven machinery. In this article, we will delve into the components, applications, and advantages of MCC panels.
Motor Control Center (MCC) are offered upto 2000A operational current at 40 degree Celsius ambient temperature in Single and Double Front Design for 70/100KA short circuit withstand capacity and IP: 54/55 degree of protection. Form IV of separation as per IS: 8623 is maintained.
| S.No | Description |
|---|---|
| 1 | Stator Rotor Starters |
| 2 | Automatic Star Delta |
| 3 | Soft Starters |
| 4 | Direct On-line |
| 5 | Variable Frequency Drives |
| 6 | Auto Transformer Starters |
| Description | Rating | |
|---|---|---|
| System | System 3 Phase, 3 or 4 Wire, 50 Hz | |
| Rated Current | Upto 2000A | |
| Rated Service Voltage | Upto 690V | |
| Rated Insulation | Upto 1000V | |
| Short Time Current | 70/100 KA for 1 Sec, 220 KA Peak | |
| Degree of Protection | Upto IP54/55 | |
| Upto Form 3 Type - 2 | ||
| Form of Separation | (optional Form 4 Type - 3 , 4 , 5) | |
| Short Time Current | ||
| Temperature Rise | ||
| Type Tested For | Degree of Protection | |
| Designed Ambient | 45 degree C | |
| Bus Bar System | Interleaved above 2000A | |
| Feeder Configuration | Semi Drawout or Fixed Type | |
| Busbar | Copper or Aluminium | |
| Operation, Control & Protection of | ||
| Distribution Network with or without | ||
| Application | SCADA/BMS Connectivity |
