Manufactured in Compliance to IS Standards & CPRI
Tested for Breaking Capacity upto 70/100KA and Maximum Equipment Rating 4000/63000A
Powder Coated with Standard Approved RAL Shades 7032 & 7035 : Siemens Grey
With Colour Coding ( as per JP INDUSTRIES )
Shrouding / Busbar Separation is done by Metallic Rigid Barriers
Unique Finger Touch Proof Shrouding
Designed to provide ample space for Cable Terminations

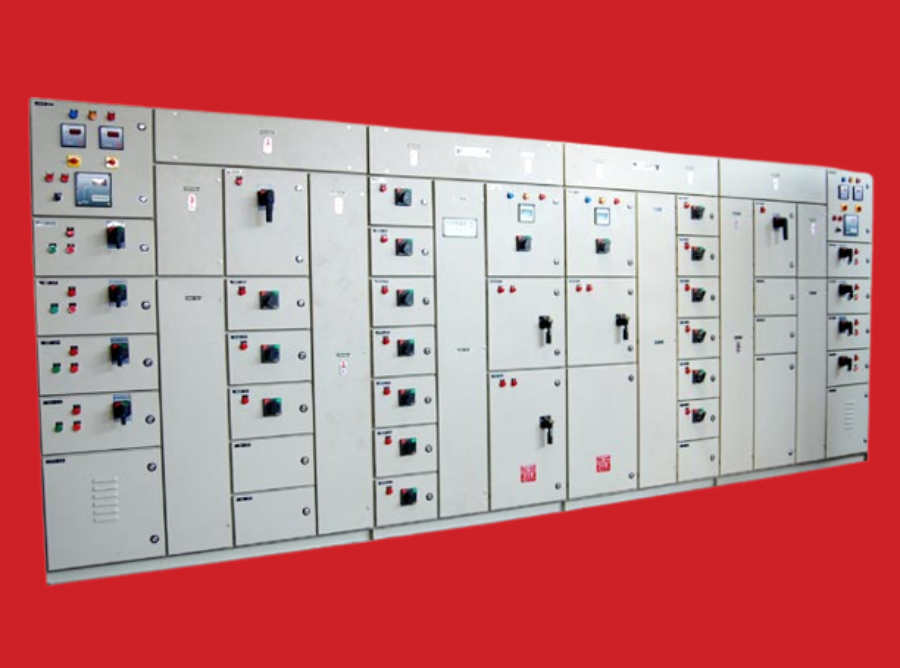

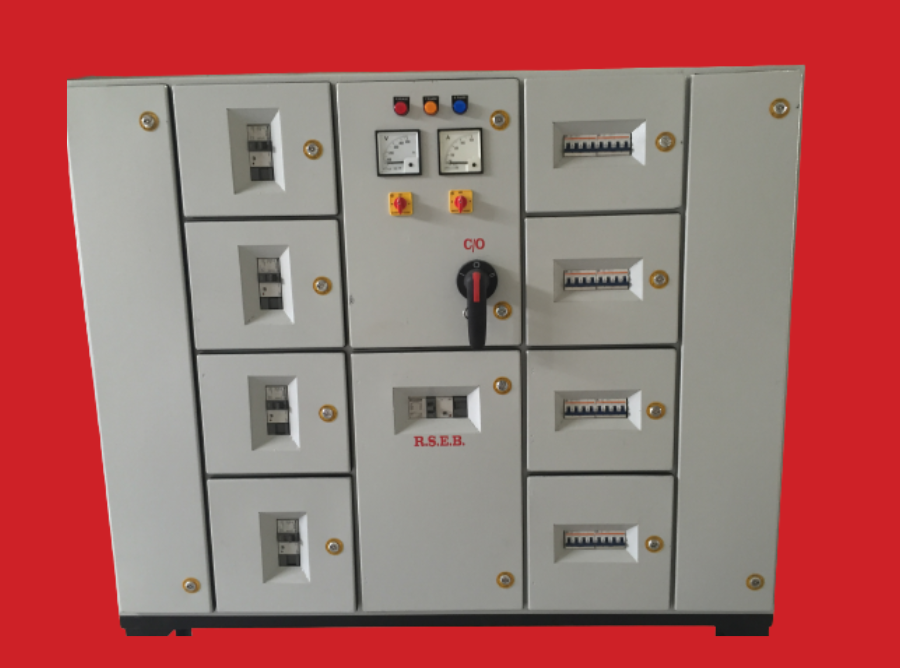

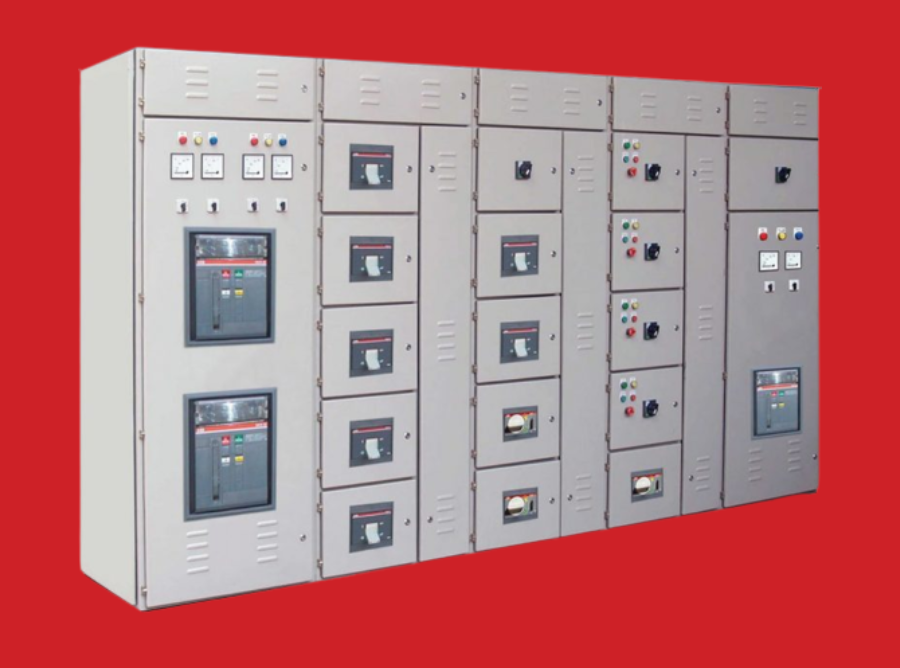

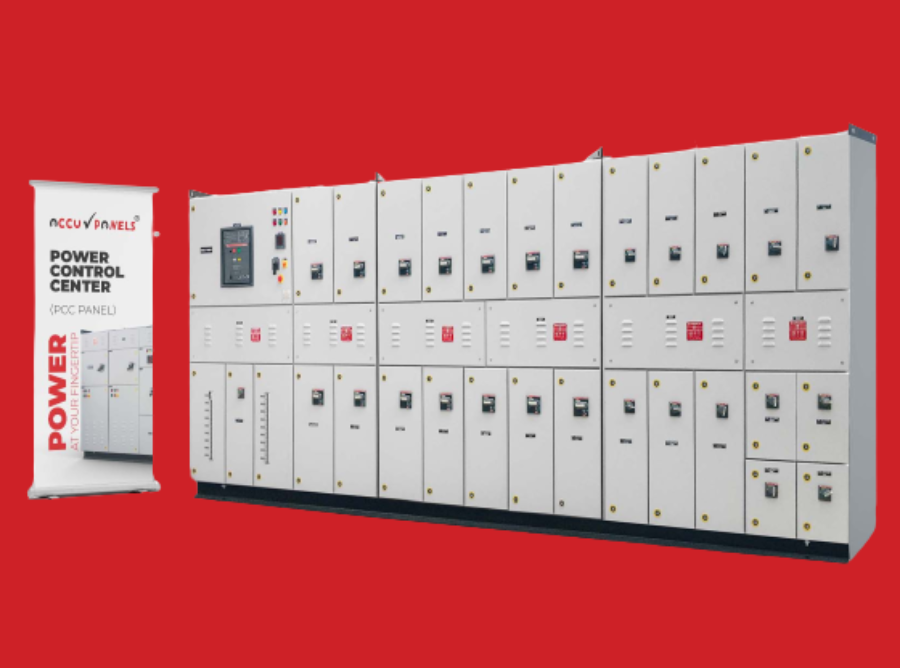

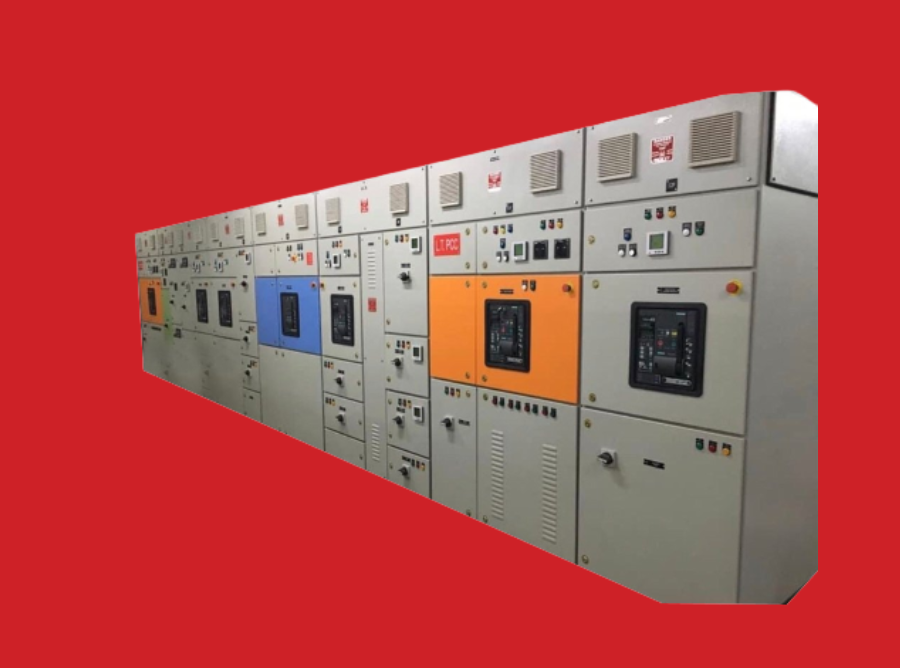

Power Control Centres are being designed and manufactured upto 6300A rating, suitable for operational voltage of 415V in a 3 phase 4 wire distribution system with an insulation voltage upto 690V at an Ambient Temperature of 45 degree Celsius. The form of separation as IS 8623 is FORM IV. Short circuit withstand capacity is 70/100KA and degree of protection IP:54/55, both of these parameters are type tested. The Switchboards Offered are in Fixed type configuration with Single & Double Front Design.
| Description | Rating | |
|---|---|---|
| System | System 3 Phase, 3 or 4 Wire, 50 Hz | |
| Rated Current | Upto 6300A | |
| Rated Service Voltage | Upto 690V | |
| Rated Insulation | Upto 1000V | |
| Short Time Current | 70/100 KA for 1 Sec, 220 KA Peak | |
| Degree of Protection | Upto IP54/55 | |
| Upto Form 3 Type - 2 | ||
| Form of Separation | (optional Form 4 Type - 1 To 7) | |
| Short Time Current | ||
| Temperature Rise | ||
| Type Tested For | Degree of Protection | |
| Designed Ambient | 45 degree C | |
| Bus Bar System | Interleaved above 4000A | |
| Feeder Configuration | Semi Drawout or Fixed Type | |
| Busbar | Copper or Aluminium | |
| Operation, Control & Protection of | ||
| Distribution Network with or without | ||
| Application | SCADA/BMS Connectivity |
